Angular unconformities

An angular unconformity is a type of geological contact in which younger, relatively flat-lying sedimentary strata rest upon the eroded edges of older strata that have been tilted, folded, or otherwise deformed prior to the deposition of the overlying layers. The contact surface itself represents a gap in the geological record — an interval during which no sediment was deposited and existing rock was removed by erosion. Angular unconformities are among the most visually dramatic features in the rock record because the discordance in bedding orientation between the two sequences is immediately apparent in outcrop, and the history they imply — deposition, burial, lithification, deformation, uplift, erosion, subsidence, and renewed deposition — demands immense spans of time to accomplish.^{4, 6}

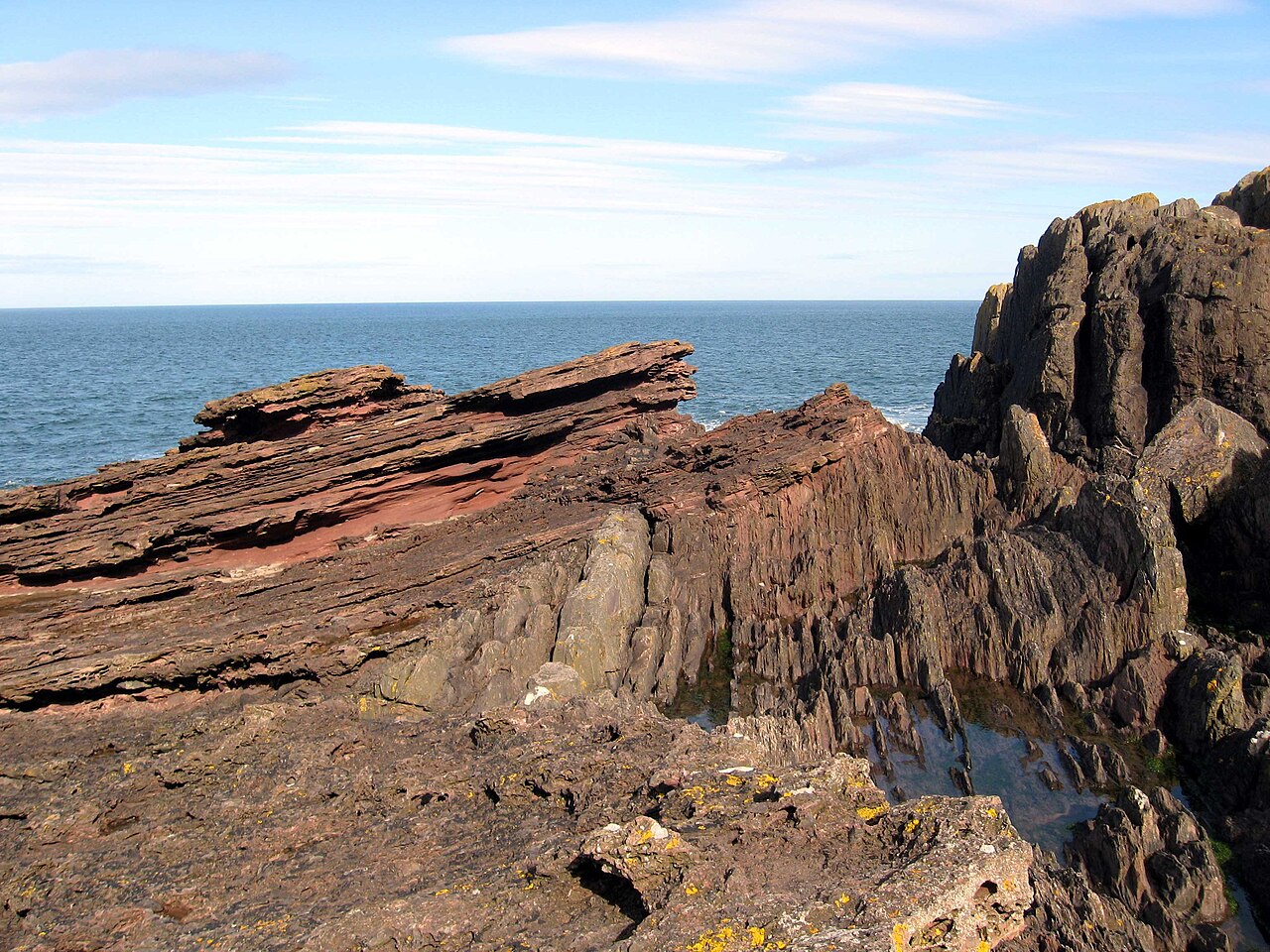

Hutton's unconformity at Siccar Point

The recognition of angular unconformities as evidence for deep time is inseparable from the history of geology itself. In 1788, James Hutton, accompanied by the mathematician John Playfair and the geologist Sir James Hall, visited Siccar Point on the coast of Berwickshire, Scotland, where he observed a spectacular angular unconformity: gently dipping beds of Upper Old Red Sandstone (Devonian age, approximately 370 million years old) resting upon nearly vertical beds of greywacke (Silurian age, approximately 435 million years old).^{1, 5} The steeply inclined greywacke had originally been deposited as horizontal marine sediments, then buried, lithified, folded by tectonic compression, uplifted above sea level, and deeply eroded before the overlying Devonian sediments were deposited on top — a sequence of events that Hutton recognized as requiring an immense, essentially incomprehensible duration of time.^{1, 3}

Playfair's account of the visit has become one of the most quoted passages in geological literature: "The mind seemed to grow giddy by looking so far into the abyss of time."² Hutton's interpretation of Siccar Point was revolutionary because it demonstrated that the Earth's history could not be confined to the few thousand years implied by a literal reading of biblical genealogies. The rocks themselves recorded a sequence of events — multiple cycles of sedimentation, deformation, and erosion — that demanded what Hutton called "time, which measures every thing in our idea, and is often deficient to our schemes."¹ His famous conclusion, that the Earth's geological history reveals "no vestige of a beginning, no prospect of an end," marked the conceptual birth of deep time in Western science.^{1, 12}

How angular unconformities form

The formation of an angular unconformity requires a specific and time-consuming sequence of geological processes. First, an initial sequence of sediments must be deposited, typically in a marine or lacustrine basin. These sediments must then be buried deeply enough and for long enough to become lithified into sedimentary rock. Next, tectonic forces — compression, extension, or strike-slip faulting — must tilt, fold, or otherwise deform the strata from their original horizontal orientation. The deformed rocks must then be uplifted above the erosion base level and subjected to prolonged subaerial erosion, which planes off the tilted beds to create a relatively flat surface. Finally, subsidence or sea-level rise must bring the eroded surface back below the depositional base level, allowing a new sequence of sediments to be deposited on top of the truncated older beds.^{4, 6, 7}

Each of these steps operates on timescales measured in millions of years. Sedimentation rates for typical marine and continental environments range from centimetres to metres per thousand years. Lithification of loose sediment into rock requires burial to depths of hundreds of metres to kilometres, which typically takes millions of years. Tectonic deformation occurs at rates of millimetres to centimetres per year, and the folding of thick sedimentary sequences requires millions of years of sustained tectonic stress. Erosion of uplifted mountain belts proceeds at rates of tens of metres per million years. The combined duration represented by a single angular unconformity is therefore typically tens to hundreds of millions of years at a minimum.^{4, 6, 8}

The Great Unconformity

One of the most famous and extensively studied angular unconformities in the world is the Great Unconformity, spectacularly exposed in the walls of the Grand Canyon in Arizona. Here, Cambrian-age Tapeats Sandstone (approximately 525 million years old) rests directly upon Precambrian Vishnu Schist (approximately 1.75 billion years old), with the contact representing a time gap of more than 1.2 billion years.^{10, 11} In some parts of the canyon, the Tapeats Sandstone lies on the tilted and eroded remnants of the Grand Canyon Supergroup, a sequence of Precambrian sedimentary and volcanic rocks that were deposited, lithified, tilted approximately 15 degrees by normal faulting, and then beveled by erosion before the Tapeats was laid down — a classic angular unconformity.¹¹

The Great Unconformity is not unique to the Grand Canyon; it is recognized across much of North America and on other continents as a widespread erosion surface separating Precambrian basement from overlying Cambrian sediments. Recent research has linked its formation to the extensive continental erosion associated with Snowball Earth glaciations of the Neoproterozoic, which stripped kilometres of rock from the continental surfaces and created the widespread peneplain upon which Cambrian seas transgressed.⁹ The global extent of this unconformity underscores the immensity of the time gap it represents and the scale of the geological processes involved in its formation.^{9, 11}

Global distribution

Angular unconformities are found at every level of the stratigraphic column and on every continent. In the Precambrian shields of Canada, Australia, and southern Africa, angular unconformities separate rock sequences billions of years old, with individual time gaps exceeding a billion years.¹³ In the Appalachian Mountains of eastern North America, angular unconformities record the repeated cycles of orogenesis (mountain building) and erosion that characterized the Paleozoic assembly of Pangaea.⁷ In the European Alps and Himalayas, angular unconformities document the complex tectonic histories of these young mountain belts, where Mesozoic and Cenozoic sediments rest discordantly on Paleozoic or Precambrian basement.⁴

The recognition that angular unconformities exist stacked upon one another in the same geological section — multiple cycles of deposition, deformation, and erosion, each requiring millions of years — was one of the key observations that led nineteenth-century geologists, including Charles Lyell, to accept the immensity of geological time before the development of radiometric dating.¹⁵ The principle was and remains straightforward: each unconformity records a minimum duration for the processes of deformation and erosion, and the summation of these durations across a stratigraphic section yields timescales that are incompatible with a young Earth.^{4, 7}

Relationship to other unconformity types

Angular unconformities are one of several types of unconformities recognized in the rock record. A disconformity is a surface between parallel sedimentary strata that represents a gap in deposition, identifiable by missing biostratigraphic zones or by physical evidence of erosion such as hardgrounds or lag deposits, even though the beds above and below are parallel. A nonconformity is a contact between sedimentary strata above and igneous or metamorphic rocks below, representing the time required for the crystalline rocks to form at depth, be uplifted, eroded to a surface, and then buried by sediment.^{6, 14} All three types represent significant gaps in the geological record, but angular unconformities are the most visually conspicuous and historically important because the angular discordance itself is the evidence for tectonic deformation — a process that inherently requires substantial time.^{4, 6}

Progressive unconformities and syntectonic sedimentation

Not all angular unconformities represent a simple two-stage history of tilting followed by renewed deposition. In many tectonic settings, sedimentation occurs simultaneously with deformation, producing what are known as progressive unconformities or growth strata. In these sequences, the angular discordance between successive beds increases progressively downward through the section: the youngest beds are nearly horizontal, while older beds are increasingly tilted, recording the gradual rotation of strata during continuous folding or faulting. Progressive unconformities are particularly well developed in foreland basins flanking active fold-and-thrust belts, where sediment shed from rising mountains is deposited on a subsiding basin floor that is simultaneously being tilted by tectonic loading.^{16, 8}

The recognition of progressive unconformities is important because they record the timing and rate of tectonic deformation with a resolution that simple angular unconformities cannot provide. By measuring the angle of successive beds and combining this information with biostratigraphic or radiometric age constraints, geologists can reconstruct the temporal evolution of folding or faulting with a precision that directly demonstrates the millions of years required for tectonic deformation to proceed at geologically observed rates.^{16, 14}

Radiometric dating of unconformity surfaces

Modern geochronological techniques have made it possible to date angular unconformity surfaces directly, rather than relying solely on the ages of the rocks above and below the contact. Minerals that form during the weathering and erosion processes operating at the unconformity surface — such as authigenic xenotime, monazite, or diagenetic clays — can be dated by uranium-lead or potassium-argon methods, providing an absolute age for the erosion surface itself. Rasmussen and colleagues demonstrated this approach using in situ uranium-lead dating of xenotime crystals that grew on unconformity surfaces in the Pilbara Craton of Western Australia, constraining the timing of erosion events in the Precambrian to within tens of millions of years.¹⁷

These direct dates on unconformity surfaces have confirmed the long time gaps inferred from stratigraphic relationships. Where radiometric dating of the youngest deformed rock below the unconformity and the oldest undeformed rock above it can be combined with a direct date on the surface itself, the resulting chronology provides a complete three-point time framework for the deformation-erosion-deposition cycle that created the angular unconformity.^{13, 17}

Significance for deep time

Angular unconformities are among the most intuitive and accessible lines of evidence for deep geological time. No special instrumentation or esoteric theory is needed to understand their implications: one need only observe that the lower beds were once horizontal, recognize that they have been tilted and eroded, and appreciate that these processes could not have occurred instantaneously.^{3, 12} Hutton grasped this at Siccar Point in 1788 without the aid of radiometric dating, geophysics, or any technology beyond his own eyes and geological reasoning. The angular unconformity remains what it was for Hutton: a window into the "abyss of time" — a physical demonstration, preserved in rock, that the Earth's history extends far beyond the reach of human experience or recorded history.^{1, 2, 5}

Modern radiometric dating has quantified what Hutton could only infer: the time gap at Siccar Point spans approximately 65 million years, the Great Unconformity in the Grand Canyon spans more than 1.2 billion years, and the angular unconformities in Precambrian shields record gaps of comparable magnitude.^{5, 9, 11} These numerical ages, derived from independent radiometric methods applied to rocks above and below the unconformity surfaces, confirm and extend Hutton's qualitative insight with quantitative precision. The angular unconformity thus serves as both a founding observation of modern geology and a continuing demonstration that the Earth's history is measured in billions, not thousands, of years.^{1, 4}
